Multifunctional Equipment
ZL-A60 Automatic filling machine

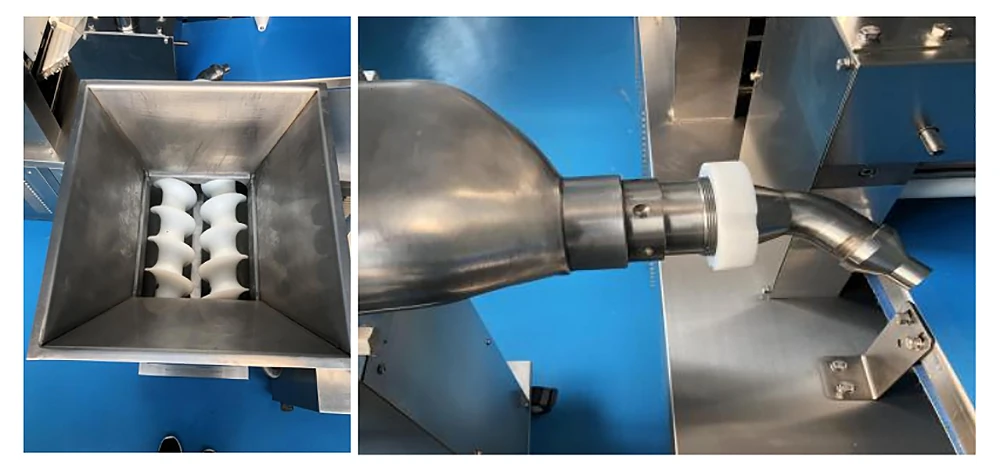

The ZL-A60 horizontal filling machine holds 15 kg of stuffing per load and feeds bread, bun, beanbag and pastry filling, including vegetable paste. The hopper, frame and drive contact parts are SUS304 stainless steel. 0.75 kW, 380V or 220V, 660 x 750 x 1460 mm, 96 kg.
Product Overview
The ZL-A60 horizontal filling machine is a bench-mounted filler for bread, buns, beanbag and pastry lines, built for bakeries and food factories that fill by hand today. It belongs to the ZL-180 Series Machines and carries a 15 kg hopper, a 0.75 kW motor and a SUS304 frame in a 660 x 750 x 1460 mm footprint.
The 15 kg one-time stuffing load keeps an operator at the nozzle instead of refilling every few minutes, and the horizontal layout pushes vegetable paste and other fillings through evenly. For a shop running bread and pastry batches, that means fewer hands on the bench and a more consistent fill weight from the first piece to the last.
Key Features
- 15 kg hopper: load stuffing once and run a longer stretch before the next refill.
- Horizontal filling action: paste moves evenly into bread, bun and beanbag products.
- SUS304 contact frame: wash-down cleaning fits food production floors.
- 0.75 kW drive: runs on standard bakery power without a heavy supply.
- 380V/220V voltage: matches the plant supply you already have.
- 660 x 750 x 1460 mm body: fits a bench or small floor bay without a long line.
- 96 kg weight: two people can move it when the layout changes.
Product Specifications
| Model | ZL-A60 |
|---|---|
| Product type | Horizontal filling machine |
| Hopper capacity | 15 kg stuffing per load |
| Application | Bread, bun, beanbag and pastry filling |
| Filling type | Even filling of vegetable and similar paste |
| Equipment power | 0.75 kW |
| Equipment voltage | 380V/220V |
| Equipment material | SUS304 stainless steel (frame, hopper and drive contact parts) |
| Equipment size | 660 x 750 x 1460 mm |
| Equipment weight | 96 kg |
| Operation details | available on request |
| Datasheet | available on request |
| Specifications | full details are listed above, and the datasheet is available on request |
Configurations & Options
| Standard ZL-A60 | 380V/220V, SUS304 body, 15 kg hopper, for bread and bun filling. |
|---|---|
| Voltage variant | specify 220V or 380V at order so the motor matches your supply. |
| Vegetable paste setup | hopper and nozzle set for vegetable filling on the same frame. |
| Pastry filling setup | configured for cream and similar pastry fillings. |
| Spare hopper | extra 15 kg hopper to swap between fillings without a wash-down stop. |
Industrial Applications
- Bread filling machine for bakery production: plant bakeries fill hundreds of buns a shift; the 15 kg hopper and horizontal action keep the fill even without an operator refilling every few minutes.
- Pastry filling machine for cream filling: pastry shops and small factories run cream and paste into shells; the SUS304 frame cleans down between fillings.
- Horizontal filling machine for vegetable paste: food factories filling vegetable paste into buns and beanbags use the horizontal action to move dense paste evenly.
- Beanbag and bun lines: snack producers filling beanbag products rely on the 0.75 kW drive for a steady fill rate through the shift.
Key Advantages
- A 15 kg one-time load cuts refill stops, so one operator can cover the filler and the packing table at the same time.
- Horizontal filling keeps vegetable paste moving evenly, which holds fill weight closer across a batch than hand scooping.
- SUS304 construction means the frame takes wash-down cleaning, so changeovers between fillings do not hold up the line.
- The 660 x 750 x 1460 mm footprint fits an existing bench or a small floor bay, so no line rebuild is needed.
- At 96 kg the unit can be moved by two people, which keeps changeover between product runs practical.
How to Choose the Right Configuration
| Standard ZL-A60 on 380V | suits bakeries already on three-phase supply and running bread and bun filling. |
|---|---|
| ZL-A60 on 220V | for shops and small plants on single-phase power that still need the 15 kg hopper. |
| Vegetable paste setup | for factories filling dense vegetable paste where even flow matters most. |
| Pastry cream setup | for pastry shops filling cream and soft fillings into shells. |
| Extra hopper option | for plants that switch fillings during the day and want to avoid a wash-down between runs. |
Why Choose Us
We quote the price against the voltage and filling setup you actually run, so the quote matches the unit that ships. The ZL-A60 is built in-house, and spare hoppers and wear parts ship from stock. Buyers sourcing from China can request a datasheet and a sample test before the order. For a first order we can arrange OEM marking and a trial unit. Every machine carries a 12-month warranty on parts and labor, with remote technical support and spare parts dispatched from stock for the life of the unit.
Factory Strength
The ZL-A60 is built and assembled in our own plant, with the SUS304 frame, hopper and drive fitted on site before dispatch. Every unit is run with a test filling load to check even flow and the 0.75 kW drive before it is packed. We supply bakeries and food factories in export markets and support OEM builds for buyers who need their own marking on the machine.
Quality Control
Each ZL-A60 goes through incoming material checks on the SUS304 sheet and hopper, in-process checks on the frame weld and drive mounting, and a final run with a test filling load before packing. Units are checked against the stated 15 kg hopper capacity and 0.75 kW drive.
- Incoming SUS304 material inspection
- In-process frame and drive checks
- Final filling test before packing
- Serial number recorded for traceability
Packaging & Delivery
The ZL-A60 is packed for export in a wooden case sized to the 660 x 750 x 1460 mm body and 96 kg weight, with the hopper and loose parts secured inside. Shipping terms, port and lead time are confirmed on the order.
- Wooden export case per unit
- Hopper and parts secured inside the case
- Shipping marks and documents per buyer instruction
- Lead time confirmed at order
FAQ
What is the hopper capacity of the ZL-A60?
The hopper takes 15 kg of stuffing in one load. That is the figure to plan refill stops around on your line.
Does the ZL-A60 run on 220V or 380V?
The machine is listed for 380V/220V. Tell us your supply at order and we set the unit to match.
What is the horizontal filling machine price for one unit?
Price depends on voltage and the filling setup you choose. Send your product and supply details and we quote the exact configuration.
Can the ZL-A60 handle vegetable paste?
Yes. The material lists vegetable filling as a standard use, and the horizontal action is set up for even paste flow.
Can it be used as a pastry filling machine for cream filling?
The ZL-A60 is set up for pastry fillings including cream. Confirm the filling type at order so the hopper and nozzle are matched.
What is your MOQ for a trial order?
A single unit is accepted for a trial. Larger quantities are quoted separately.
What is the lead time and payment term?
Lead time is confirmed when the order is placed. Payment terms are agreed with the order and stated on the invoice.
Do you offer OEM marking on the ZL-A60?
Yes, OEM builds with your marking can be arranged. Send the artwork and quantity with your enquiry.
How is the machine packed for shipping?
Each unit ships in a wooden export case sized to the 660 x 750 x 1460 mm body, with the hopper secured inside.
Where can I find the horizontal filling machine specifications and datasheet?
The specifications are listed on this page: 15 kg hopper, 0.75 kW, 380V/220V, SUS304 contact parts, 660 x 750 x 1460 mm and 96 kg. The full datasheet is available on request.
Are you a horizontal filling machine manufacturer or a trading company?
We are a horizontal filling machine manufacturer: the ZL-A60 is built and assembled in our own plant, and OEM builds are supported.
How do I buy a horizontal filling machine for sale from you as a supplier in China?
Send your filling product, voltage and quantity to our sales team. We confirm the configuration, quote, and ship from our plant in China; a single trial unit is accepted.
