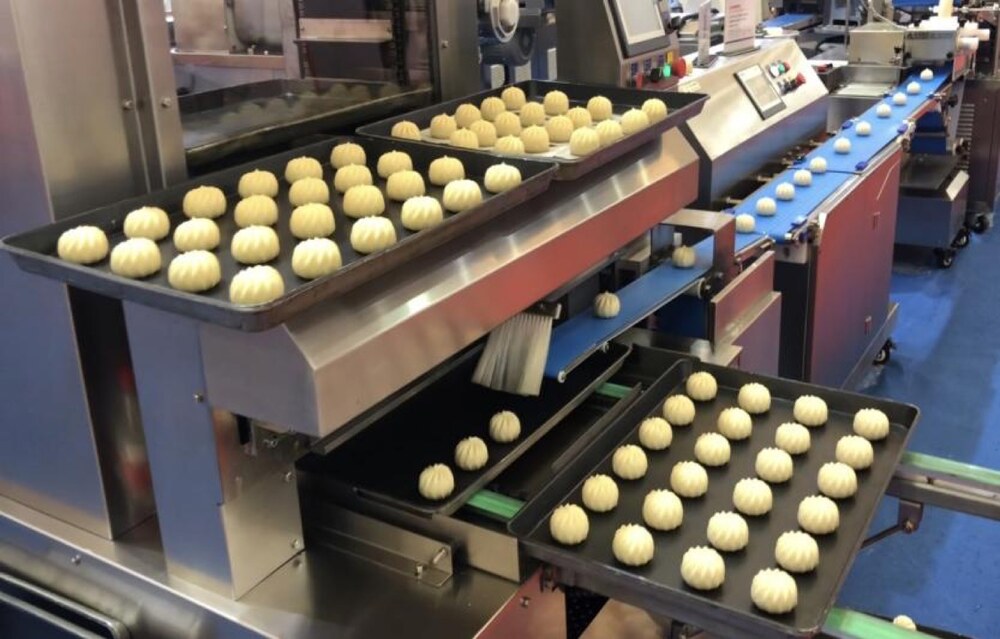

ZL-A58 Pan Arranging Machine
The ZL-A58 pan arranging machine places 1,000-12,000 pieces per hour, with piece weight from 15-350 g and parallel or cross arrangement on double or three rows. Positioning is by servo motor, and the PLC holds 99 memory groups. 2.5 kW, 380V or 220V, 1550 x 1820 x 1680 mm, 465 kg, SUS304.
Product Overview
The ZL-A58 pan arranging machine is an automatic panning machine in the ZL-180 Series Machines category, built to place dough pieces onto baking pans in a set pattern for bakery production lines. It runs on a PLC control system with 99 memory groups, handles 1000 to 12000 pieces per hour depending on product size, and takes pieces from 15 to 350 g. The frame is SUS304 stainless steel.
Bakeries that pan by hand lose speed and consistency as line rates climb. The ZL-A58 removes that manual step: the computer judges the arrangement and piece count, and the servo positioning system places each piece to the pattern you set. One operator can change from a parallel to a cross layout from the memory bank instead of re-setting the line by hand.
Key Features
- PLC control with 99 memory groups: store a pattern for each product and recall it at changeover instead of re-entering settings.
- Servo motor positioning system: piece placement stays accurate at line speed, so rows land where the pattern expects them.
- Parallel or cross arrangement: set the layout to match the pan and the product, not the other way round.
- Automatic judgement and calculation: the computer works out the arrangement and piece count, which cuts operator input at changeover.
- Fault alarm beep function: an alarm sounds when the machine detects a fault, so the line stops before a run of mis-panned product builds up.
- Double row and three row arrangement: the arrangement can be built to customer requirements for higher-throughput lines.
- SUS304 stainless steel construction: the frame and product-contact surfaces suit a wet bakery environment and routine washdown.
Product Specifications
| Model | ZL-A58 |
|---|---|
| Control system | PLC with 99 memory groups |
| Arrangement modes | parallel or cross |
| Positioning | servo motor system |
| Capacity | 1000-12000 p/h depending on product size |
| Weight range | 15-350 g per piece depending on product size |
| Power | 2.5 kW |
| Voltage | 380V/220V |

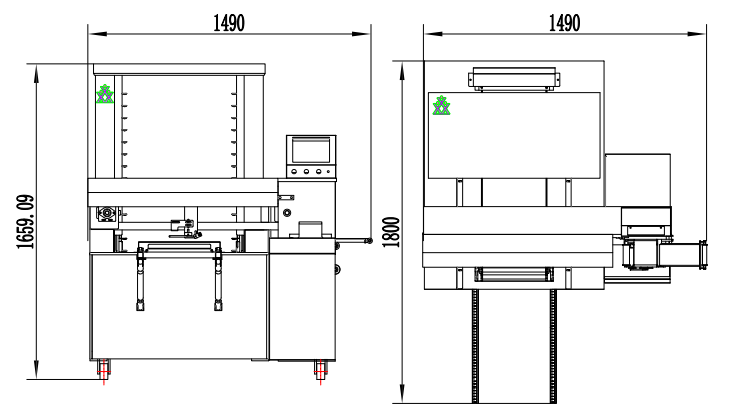

| Dimensions | 1550 x 1820 x 1680 mm |
| Weight | 465 kg |
| Material | SUS304 stainless steel |
| Arrangement rows | double row or three row to customer requirement |
| Fault alert | alarm beep function |
| Pan arranging machine datasheet | available on request |
| Full pan arranging machine specifications | available on request for your configuration |
Configurations & Options
| Standard ZL-A58 | PLC control, servo positioning and parallel/cross arrangement for general bakery panning. |
|---|---|
| Double row arrangement | for lines that run two rows of pieces per pan and want a higher piece count per cycle. |
| Three row arrangement | for higher-throughput products where the pan layout takes three rows. |
| Voltage 380V | for plants running a 380V three-phase supply. |
| Voltage 220V | for sites where the available supply is 220V. |
| Memory group setup | 99 groups are available for product recipes; the group list is set to your product range at order. |
Industrial Applications
- Pan arranging machine for bakery production: plant bakeries running continuous lines use the ZL-A58 to place dough pieces on pans at rates from 1000 to 12000 p/h, removing the manual panning step that limits line speed.
- Pan arranging machine for bun lines: bun plants running 15-350 g pieces set a parallel pattern in the memory bank and recall it at each product change, so the same machine handles several bun sizes.
- Pan arranging machine for bread plant: bread plants with fixed pan layouts use the cross arrangement and the computer-calculated piece count to keep rows aligned through the run.
- Pan arranging machine for automated panning: bakeries adding automation to an existing line fit the ZL-A58 ahead of the proofer or oven, where the servo positioning system places pieces to the pattern the downstream equipment expects.
Key Advantages
- The 99-group memory bank turns changeover into a recall step, so a plant running several products spends minutes on setup rather than re-entering the pattern by hand.
- Servo positioning holds placement accuracy at the top of the 1000-12000 p/h range, which is where manual panning and fixed mechanical guides start to drift.
- The computer calculates the arrangement and piece count for each run, so the operator does not have to work out the pattern before starting.
- A 15-350 g weight range covers small buns through larger bread pieces on one machine, which reduces the number of units a plant needs to buy.
- SUS304 construction and a 2.5 kW drive suit a wet bakery floor, and the fault alarm gives the line crew a warning before mis-panned product accumulates.
How to Choose the Right Configuration
| Standard ZL-A58 with parallel arrangement | suits bakeries running one or two pan layouts where rows run straight along the pan. |
|---|---|
| ZL-A58 with cross arrangement | suits plants whose pan layout or downstream equipment needs the pieces turned across the pan. |
| ZL-A58 with double row arrangement | for lines that want two rows per pan and a higher piece count per cycle. |
| ZL-A58 with three row arrangement | for high-throughput products where the pan takes three rows. |
| 380V configuration | for plants with a 380V three-phase supply. |
| 220V configuration | for sites where 220V is the available supply. |
