Multifunctional Equipment

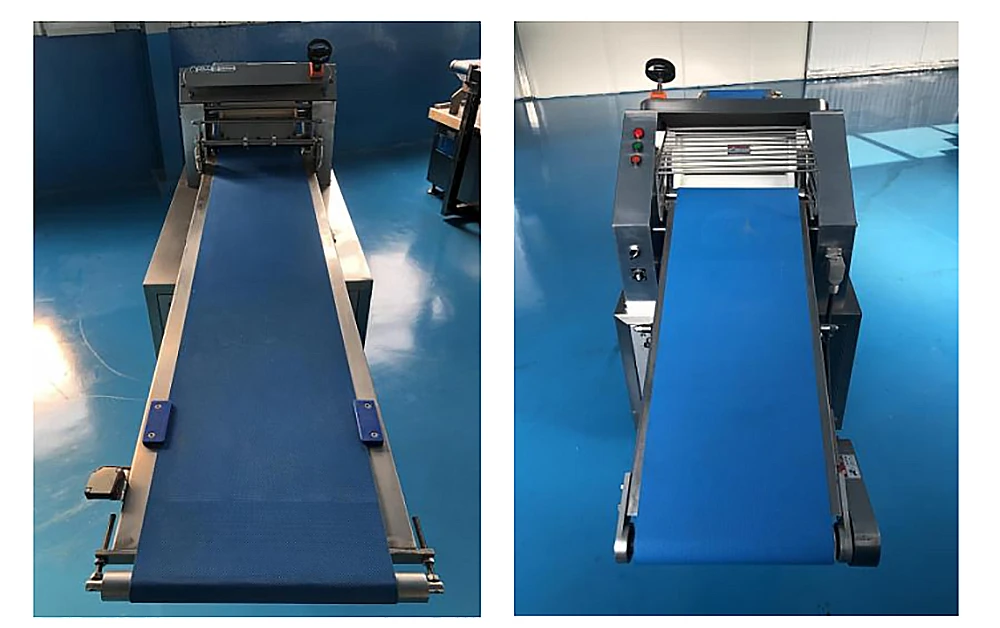

ZL-631 Divider and Shaping Machine
The ZL-631 divider and shaper portions and rounds dough in one pass, with belt width and thickness set by voltage-controlled adjustment. Output follows the moulding machine it is matched to, and the unit connects to a continuous press. 3.0 kW, 380V or 220V, 3200 x 680 x 1200 mm, 330 kg, SUS304.
Product Overview
The ZL-631 divider and shaping machine is a dough divider rounder in the ZL-180 Series Machines category, built for bakeries and food factories that run automatic dough production. It divides dough into portions and shapes them in one pass, with a 3.0KW drive, a 3200*680*1200mm footprint, and SUS304 stainless steel construction.
The belt structure extends further than a stand-alone unit, so the machine connects directly to a continuous press and runs in line with the rest of the automatic line. Belt width and thickness are adjustable and controlled by voltage, which lets a buyer set the machine to the dough piece the line already produces instead of rebuilding the line around the machine.
Key Features
- Extended band structure: connects to a continuous press so the divider runs as part of the automatic line, not as a separate station.
- Voltage-controlled belt adjustment: width and thickness are set from the control, which shortens changeover between dough sizes.
- SUS304 stainless steel: contact surfaces resist corrosion and daily washdown in a food production room.
- 3.0KW drive: enough power to divide and shape continuously at line speed without stalling on stiff dough.
- Matching molding machine capacity: output is rated together with the molding machine it runs beside, so the two units stay in step.
- 3200*680*1200mm frame: a narrow footprint that fits into an existing line layout without a major rebuild.
Product Specifications
| Model | ZL-631 |
|---|---|
| Machine type | Divider and shaping machine (dough divider rounder) |
| Capacity | rated with matching molding machine |
| Belt width and thickness | adjustable, voltage-controlled |
| Line connection | connects with continuous press |
| Equipment power | 3.0KW |
| Equipment voltage | 380V/220V |
| Equipment dimensions | 3200*680*1200mm |
| Equipment weight | 330kg |
| Equipment material | SUS304 stainless steel |
| Options | available on request |
Configurations & Options
| 380V configuration | for plants running a 380V three-phase supply, the standard line voltage in most industrial bakeries. |
|---|---|
| 220V configuration | for smaller workshops or sites where only 220V is available. |
| Continuous press connection | specify when the divider must run in line with an existing press rather than as a stand-alone unit. |
| Matching molding machine | capacity is rated together with the molding machine, so the pair is specified as one set. |
| Belt width and thickness setting | set at order to the dough piece the line produces; adjusted on site by voltage control. |
Industrial Applications
- Dough divider rounder for bakery lines: plant bakeries running a continuous press need portions divided and shaped at line speed; the extended band structure connects the divider to the press so dough moves without a manual transfer.
- Dough divider rounder for bread production: bread plants producing a fixed piece weight set the belt width and thickness by voltage control, which keeps portion size consistent across a shift.
- Dough divider rounder for automatic shaping: food factories building an automatic line use the ZL-631 as the shaping stage, with capacity matched to the molding machine beside it.
- Dough divider rounder for bakery lines in medium-volume plants: a 3200*680*1200mm frame and 3.0KW drive suit a line that runs one or two products a day and changes size between runs.
- Dough divider rounder for bread production in stainless-steel rooms: SUS304 construction suits washdown areas where mild steel frames would corrode.
Key Advantages
- The extended band structure removes the manual transfer between press and divider, so a line runs with fewer operators at the changeover point.
- Voltage-controlled belt adjustment means a size change is made from the control, not by swapping parts, which cuts downtime between products.
- SUS304 construction carries the machine through daily washdown; a mild steel frame would need repainting and would shed into the food zone.
- Capacity is rated with the matching molding machine, so the divider and the next stage are bought as one set and run at the same speed.
- At 330kg and 3200*680*1200mm, the unit can be moved into an existing line without a structural rebuild of the production room.
How to Choose the Right Configuration
| ZL-631 on 380V | suits plant bakeries with a three-phase supply and a continuous press already on the line. |
|---|---|
| ZL-631 on 220V | suits smaller workshops or sites where 380V is not available; confirm the supply before ordering. |
| ZL-631 with continuous press connection | the choice when the divider must run in line rather than as a stand-alone station. |
| ZL-631 with matching molding machine | order the pair when capacity has to be rated as one set for the line. |
| ZL-631 with belt set to your dough piece | specify width and thickness at order so the machine arrives set for your product. |
Why Choose Us
- We quote the dough divider rounder price against the configuration you specify, so the figure covers the voltage, belt setting and line connection you need.
- The frame and belt structure are built in-house, and the belt setting can be adjusted to your dough piece before shipment.
- Spare belts and wear parts are supplied from the same production line, which shortens the wait when a part needs replacing.
- OEM support is available for buyers who need their own mark on the machine; confirm the details at quotation.
- Export packing and documents are handled for each order; the dough divider rounder for sale listing is quoted with delivery terms to your port.
- Each unit carries a 12-month warranty on the drive and electrical assembly, with remote technical support for setup and belt adjustment.
- After-sales service is handled by our export team, and spare parts remain available beyond the warranty period.
Factory Strength
The ZL-631 is built on our own line: the SUS304 frame is formed and welded in-house, the belt and drive assembly is fitted and aligned, and the electrical panel is wired and tested before the unit is run. Each machine is checked for belt tracking, width and thickness adjustment, and drive operation under load. Units are packed for export from our plant and shipped to bakery and food-factory buyers in overseas markets. Our plant covers a set floor area with dedicated fabrication, assembly and testing lines, and the production capacity and staff numbers are confirmed with each quotation so buyers can match output to their order volume.
Quality Control
Incoming SUS304 sheet and drive components are checked against the order before fabrication. In-process checks follow the frame weld, belt alignment and electrical wiring. Every unit runs under load before packing, with belt width and thickness adjustment tested through the voltage control. Traceability follows the machine serial through assembly and final inspection.
Packaging & Delivery
Each ZL-631 is packed for export in a protective wrap and case suited to a 3200*680*1200mm, 330kg unit. Loading and container quantity depend on the order mix and are confirmed at quotation. Delivery terms, port and lead time are stated on the order confirmation. The buyer supplies the delivery address, any marks required, and the documents needed for import.
FAQ
What is the difference between a divider and a shaping machine?
The ZL-631 does both in one pass: it divides the dough into portions and shapes them before the pieces move to the next stage. It is a dough divider rounder, so the two functions are built into one unit.
Can the ZL-631 connect to our existing continuous press?
Yes. The extended band structure is made to connect with a continuous press. Send the press model and line layout at enquiry so the connection is confirmed before order.
How are belt width and thickness adjusted?
Both are adjusted through voltage control on the machine. The setting is made from the control, which lets you change dough piece size between runs.
Can the ZL-631 handle our bread dough?
The machine is built for dough dividing and shaping in bakery lines. Share your dough type, piece weight and required output so we can confirm the belt setting and capacity with the matching molding machine.
What voltage does the machine run on?
The ZL-631 is available in 380V and 220V configurations. Confirm your plant supply at order so the correct configuration is built.
What is the dough divider rounder price?
Price depends on voltage, belt setting and whether the unit is supplied with a continuous press connection or a matching molding machine. Send your specification for a quotation.
What is your MOQ for a trial order?
MOQ is confirmed at quotation and depends on the configuration. A single unit can be arranged for a trial; state this at enquiry.
What is the lead time and what payment terms do you offer?
Lead time is stated on the order confirmation once the configuration is fixed. Payment terms are agreed at quotation; a deposit is normally required before production.
Can you supply a dough divider rounder datasheet and specifications?
Yes. The dough divider rounder specifications on this page cover power, voltage, dimensions, weight and material. A full datasheet for your configuration is available on request.
How do I choose a dough divider rounder supplier China?
Check that the supplier builds the frame and belt assembly in-house, states the warranty and spare-part terms in writing, and quotes against your voltage, belt setting and line connection. Ask for the datasheet and delivery terms to your port before comparing offers.
