Full Automated Baking Flat Bread, Pancakes Production Line

Short Description:


Product Detail

Product Tags

微信图片_20200313112821

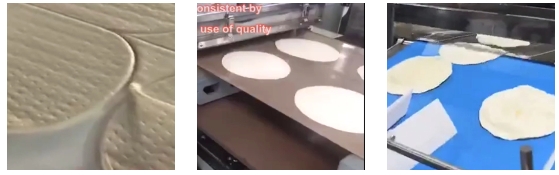

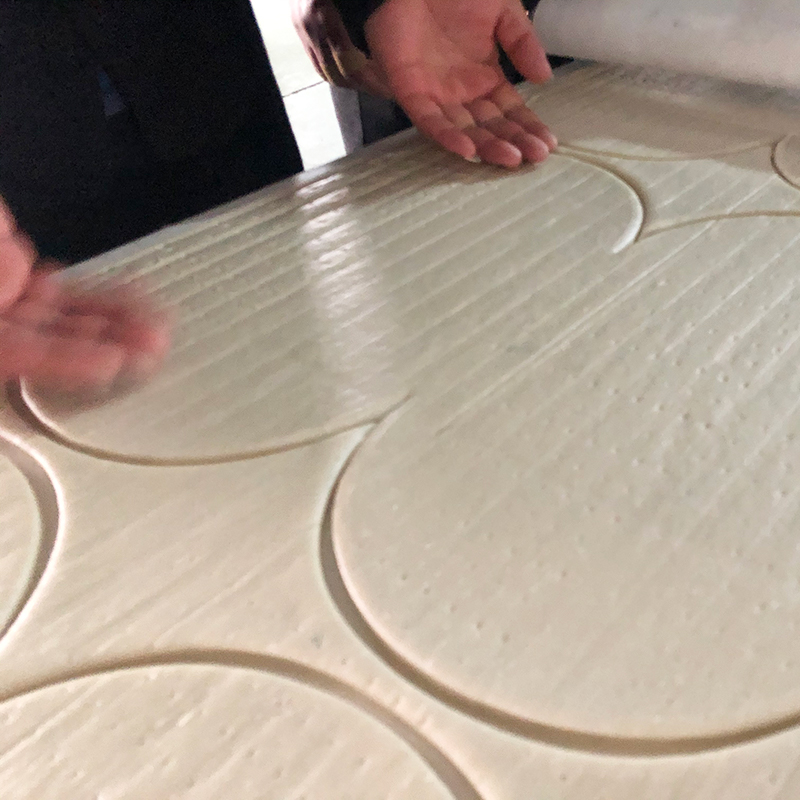

The fully automated pita production line consists of a dough sheet forming section, baking, cooling, stacking, and can be integrated with a packing machine to achieve a fully automated production process. This line is specifically designed for large-scale industrial food factories. The consistent shape of the pita is ensured through the use of a dough belt forming method and rolling cutter. Superior processing results are achieved thanks to the utilization of high-quality stainless steel materials.
Capacity: 20,000-60,000 pieces per hour.

扁平面包机

Details:

Output Capacity 500 kg/h
Weight of each piece  35-70g
ize of each piece  200,250,300mm (diameter)
Baking time 3 minutes
Cooling time 15 minutes
Production speed 6000 pieces/hour
Power supply 380 V & 50 Hz
Pressure of compressed Air 0.8MPa
MOC Main machine and product contact part SS304
Tunnel Oven Direct heating system, Length10 meters, width 1 meter, temperature 150-250ºC
 Electrical consumption 200 KW/ hour
Gas consumption Accordingly
